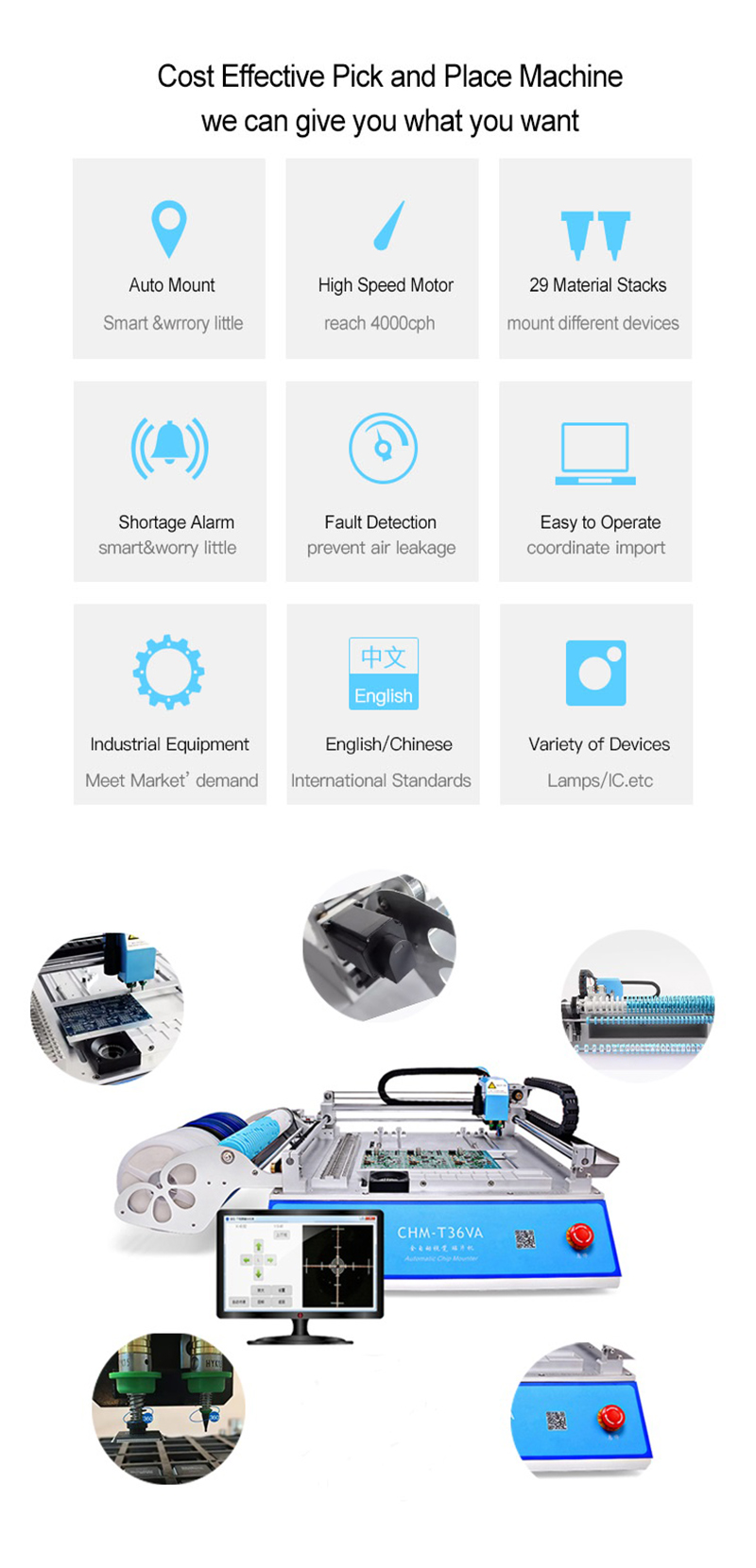

CHM-T36VA is a vision-based desktop pick and place machine
which need connect external PC with windows 7 system.
It is very reliable with low-cost economic model,
this small platform machine comes with advance vision system,
closed-loop control, 29pcs material stacks. High precision and easy operation software.
It compatible all different kinds of components 0402-5050,SOP, QFN, TQFP...
very suitable for for prototype builders, hobbyists, developers, and development groups
and small batches production,
you just need to prepare a computer which has USB port
Parameters

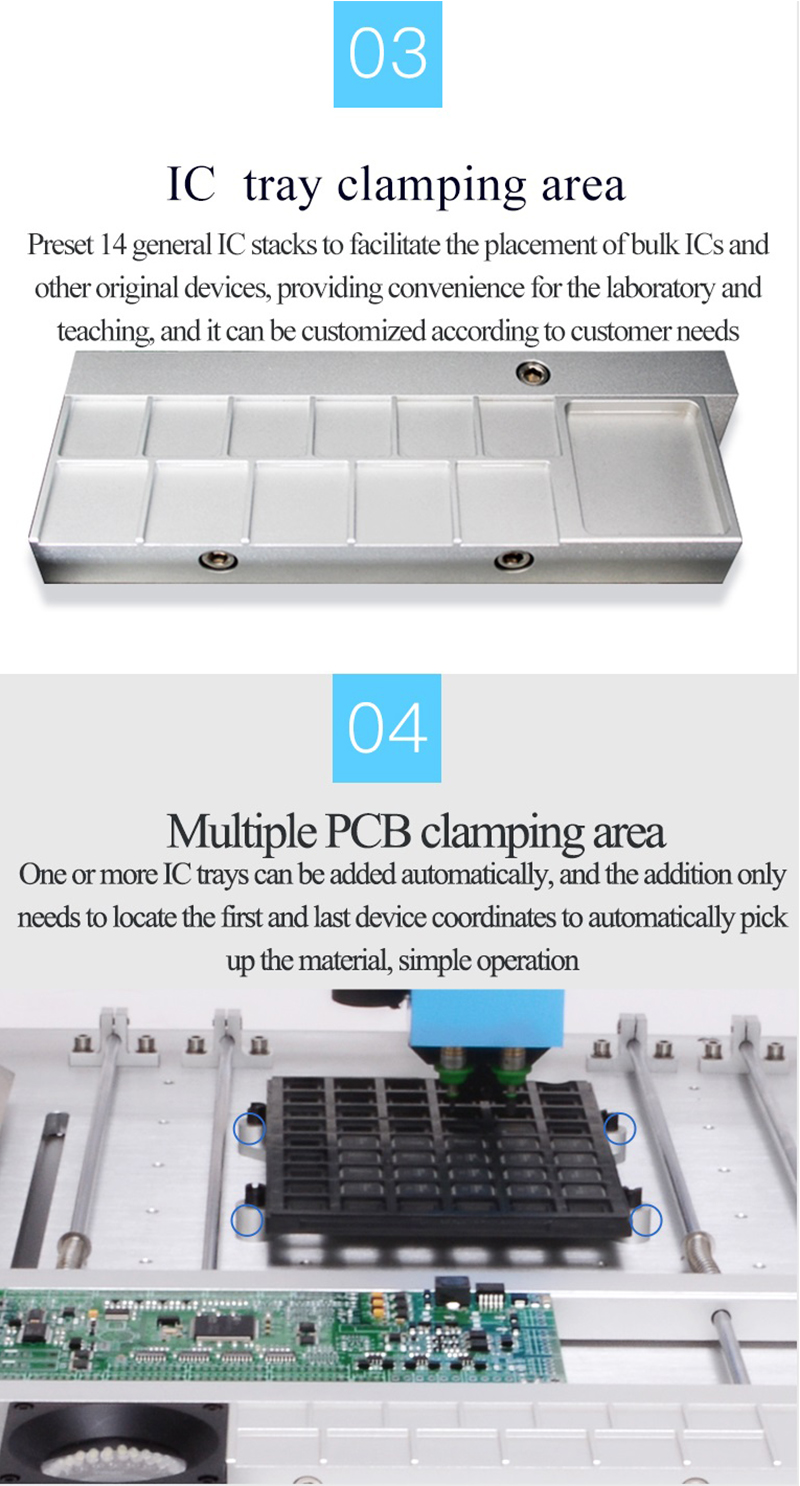

Model | CHM-T36VA |
PCB area | 10mm*10mm - 355mm*355mm |
X Y Z axis Travel | 400*460*15mm |
Placement heads | 2pcs |

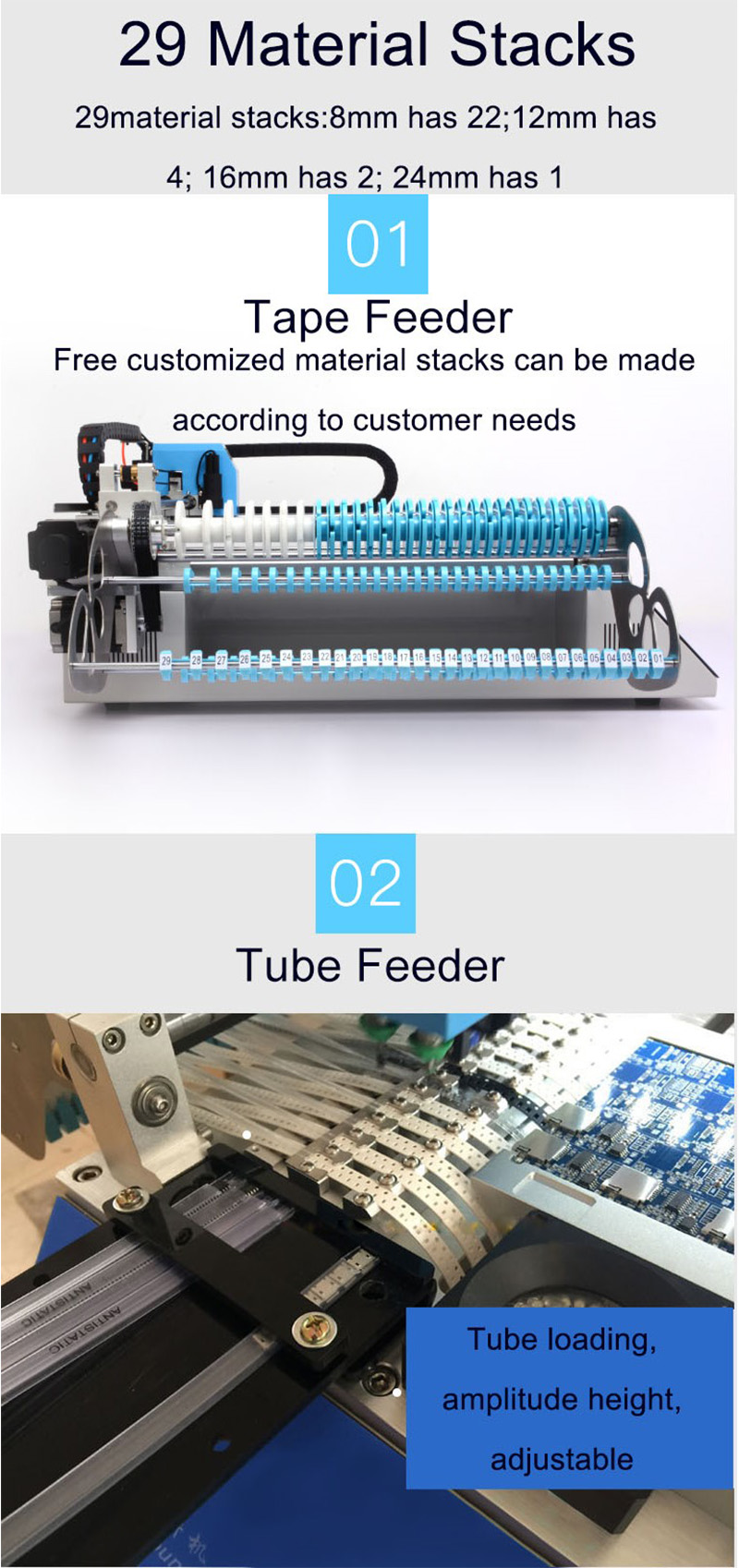

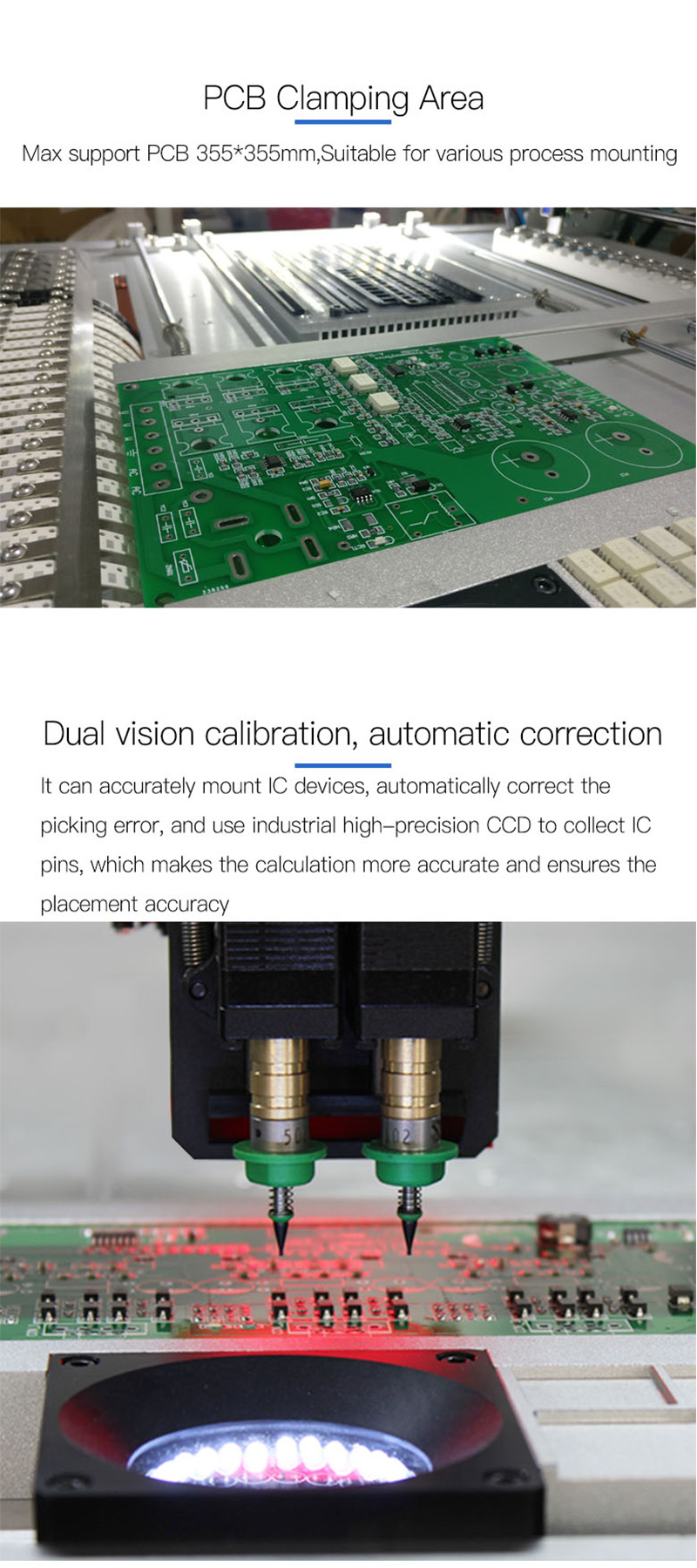

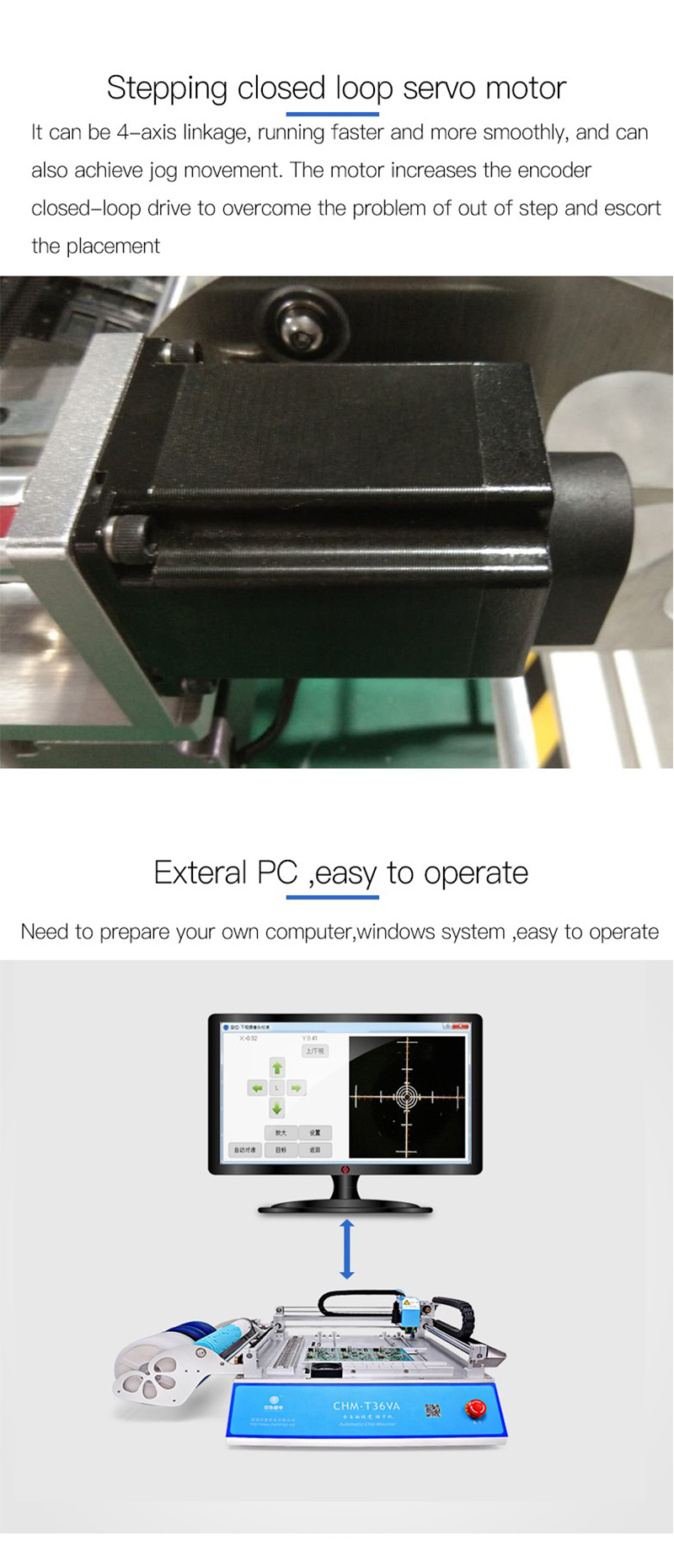

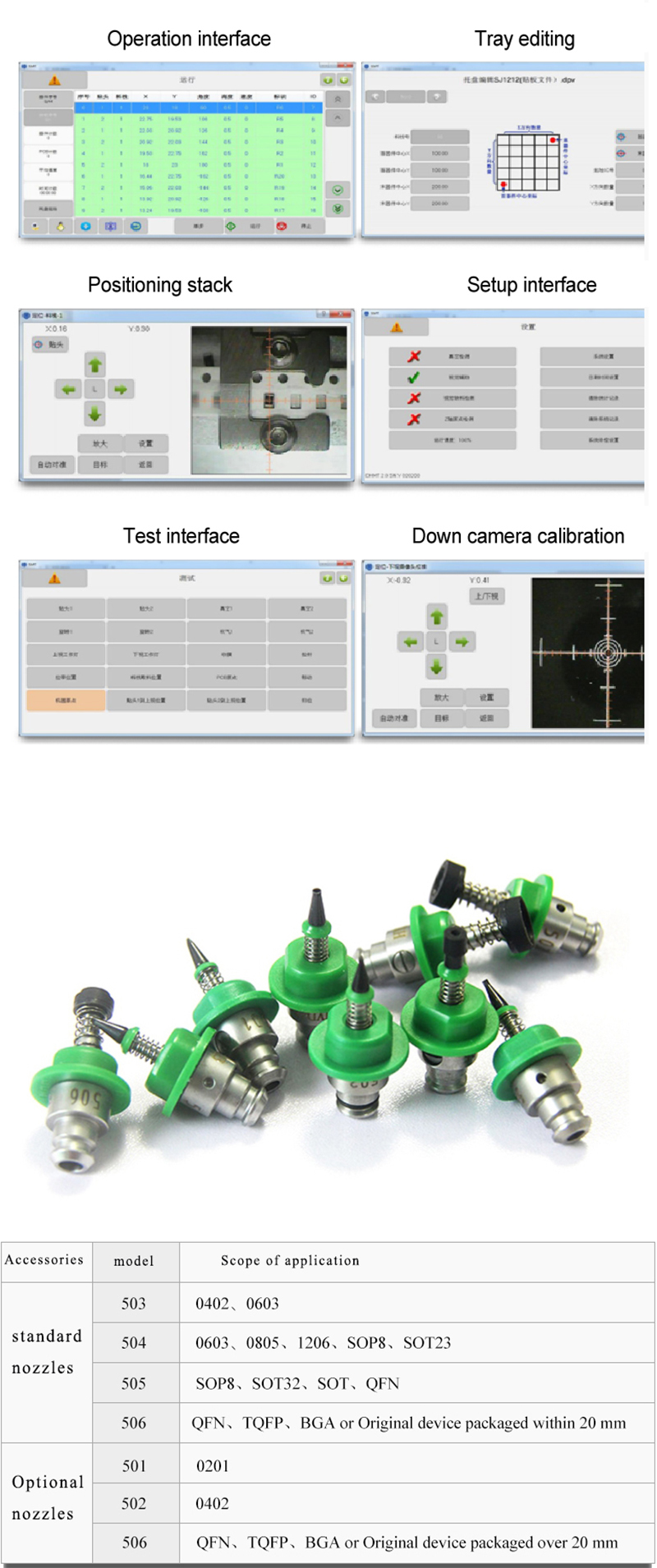

Feeders | 8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs |
Vision system | Dual cameras(up & down cameras) |
Drive | Closed-loop control stepper servo drive system, make sure never lose step |
Z axis self-return detection | Yes, prevent nozzles breaking |
Pull pin self-return | Yes |
Leakage of material detection method | Vacuum detection, vision detection |
Mounting speed | 4000cph (vision off); 2500cph (vision on) |
Mounting precision | ±0.025mm |
Components | 0402-5050,SOP,QFN etc(tape width: 8MM,12MM,16MM,24MM) |
Machine dimension | L 960mm * W 705mm * H 335mm |
Vacuum pump | -92KPa (2pcs,build-in, mute type) |
External air source | No need (machine build-in mute vacuum pump 2pcs) |
External PC | Yes (software compatible with windows7) |
Voltage | 220V /110V |
Net weight | 65kg |
Gross weight | 76kg |
Our service
This SMT machine will be tested well before ship out.

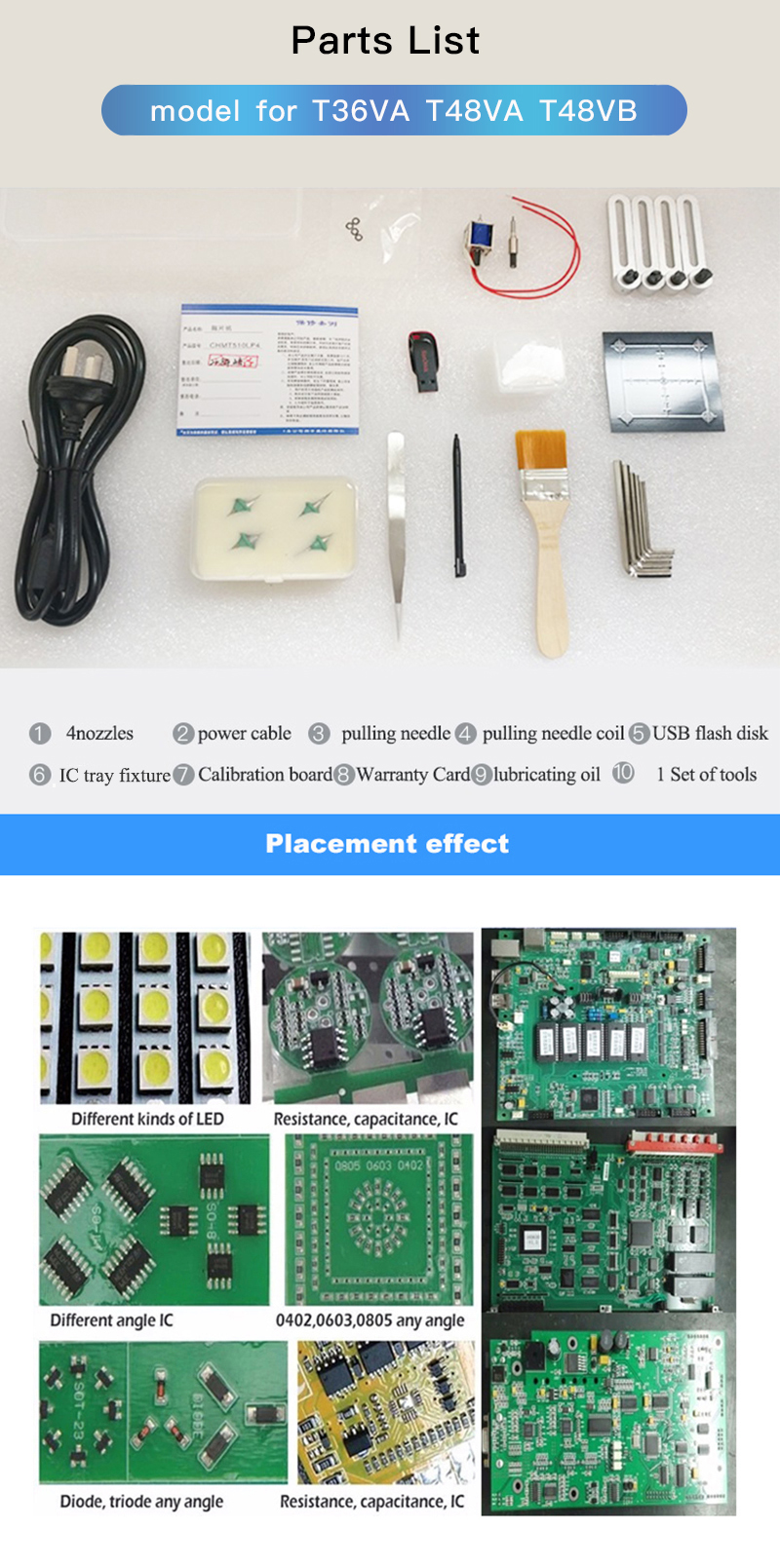

Tools and manuals are complete included in the package.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
